Querying the Version Tree

VisTrails is designed for manipulating collections of workflows, and an integral part of this design is the ability to quickly search through these collections. VisTrails provides two methods for querying vistrails and workflows. The first is a Query by Example interface which allows you to build query workflows and search for those with similar structures and parameters. The second is a textual interface with a straightforward syntax. For each interface, the results are visual: each matching version is highlighted in the History view, and if the query involves specific workflow characteristics, any matching entities are also highlighted in the Pipeline view for the current version.

Query By Example

One of the problems faced when trying to query a collection of workflows is the fact that structure is important. Suppose that you want to find only workflows where two modules are used in sequence. Instead of trying to translate this into a text-based syntax, it is easier to construct this relationship visually. VisTrails provides such an interface which mirrors the Pipeline view, allowing you to construct a (partial) workflow to serve as the search criteria.

To use the Query by Example interface, click on the Search button on the toolbar. This view is extremely similar to the Pipeline view and pipelines can be built in a similar manner. Just like the Pipeline view, modules are added by dragging them from the list on the left side of the window, connections are added by clicking and dragging from a port on one module to a corresponding port on another module. Setting module parameters in this view will narrow the search to matching modules whose parameters fall within the specified range of values. Figure Example pipeline in Search mode shows an example pipeline that has been built in the query builder.

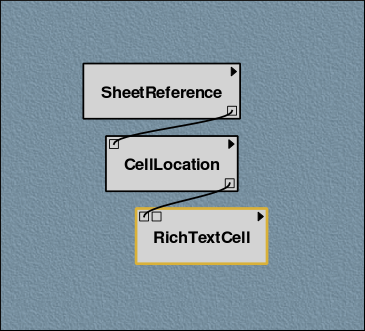

Example pipeline in Search mode.

The next step is to decide whether to search the Current Vistrail, Current Workflow, or all Open Vistrails. The results of the first option are displayed on a version tree as well as in the Workspace panel. Non-matching versions in the version tree will be grayed out while matching versions will be displayed in the tree as normal. In contrast, the Workspace panel will display matching results and omit versions with no matches. Double-clicking a version from the Workspace's results will bring up the associated pipeline with matching modules highlighted. See Figures Workspace... and Pipeline....

The remaining two options are Current Workflow and Open Vistrails. The Current Workflow option is the simplest and will display the pipeline with matching modules highlighted. The Open Vistrails option will put all of its results in the Workspace panel, listing open vistrails with their matching versions. From here, double-clicking on a vistrail will bring up a version tree which emphasizes matching versions, or double-clicking on a version will bring up the associated pipeline with matching modules highlighted.

After constructing a pipeline and selecting the appropriate search option, click the Execute button to begin the query. This button will be available as long as the query window is not empty. However, you may need to press the Back to Search button to return to the query window to re-execute.


You may leave the Query either through use of the toolbar or by pressing the Edit button. However, the search results will persist until the search is cleared (press Clear Search), returning the workspace to its normal form.

Try it now!

Let’s practice making a simple query. Open the “offscreen.vt” example vistrail. Click on the Search button to enter Search mode. Create a query like the one shown in Figure Example pipeline in Search mode by dragging the modules SheetReference, CellLocation, and RichTextCell onto the Search canvas. (These modules can be found under the “VisTrails Spreadsheet” header in the Modules panel.) Connect the input and output ports of the modules as shown, then click the Execute button to perform the query. VisTrails will automatically switch to the History view, with all matching versions highlighted (Figure History...). Notice that the query results are also displayed in the Workspace tab. Double-click on the html version in the workspace to open the results in the pipeline view.


Workspace - The query results displayed in the workspace.

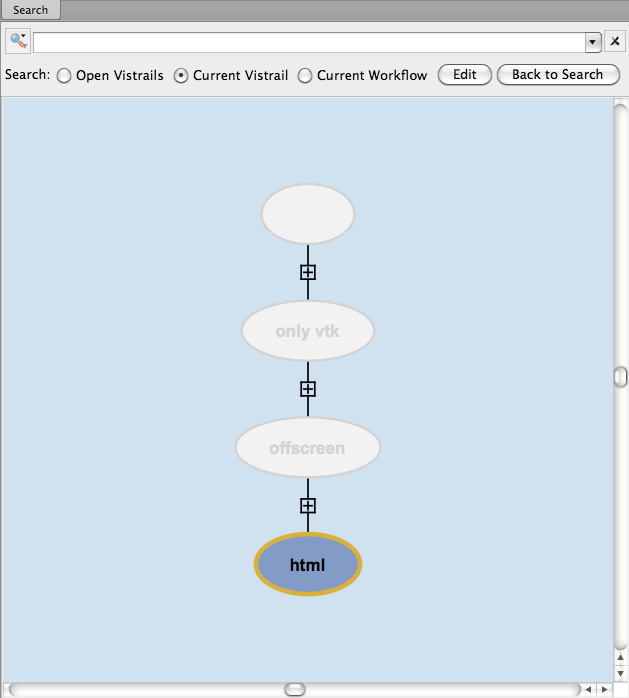

History - Search results in the History view.

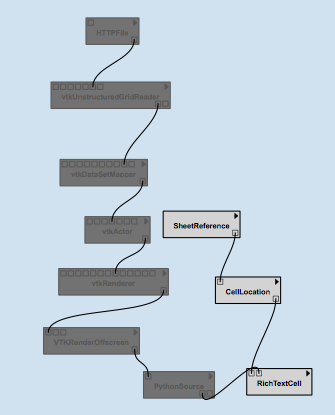

Pipeline - The results in the Pipeline view.

Note that Query by Example provides the capability to iteratively refine searches by adding more criteria. For example, if you were interested in workflows that contain a certain module, you may find that such a query returns too many results. You could then refine the query to find only those workflows where the given module has a parameter setting that falls within a given range. This is done by specifying parameter values in the Methods panel on the right side of the window. One major difference between the Pipeline view and the Search view is that you can use comparison operations, such as ‘<’ and ‘>’, in parameter values. The following example illustrates this.

Try it now!

Open the “terminator.vt” example file, and enter Search mode. Drag the vtkActor module from the Modules panel onto the Search canvas. Execute the query, and see which versions of the workflow contain a vtkActor module. Select Back to Search to return to the Search view, select the vtkActor module, then select RotateZ method from the Module Information tab. In the RotateZ text field, select '>' and then enter ‘90’. When you Execute the query this time, you will notice that the results are different. This is because we are searching for versions that not only contain a vtkActor module, but that also use a value greater than 90 in this module’s RotateZ method. Your results should resemble those in Figure Query result showing all workflows....

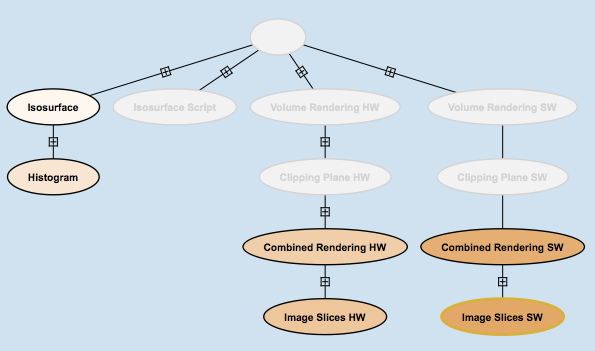

Query result showing all workflows in the “terminator.vt” example that contain the module vtkActor.

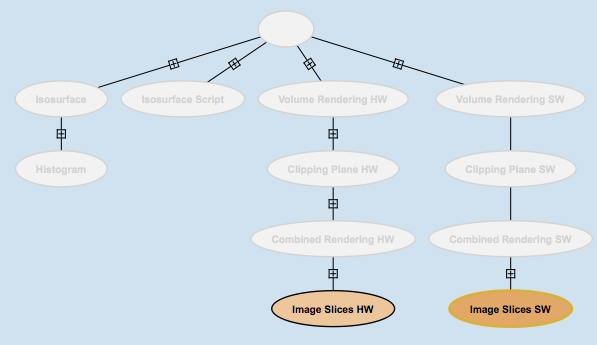

The same query refined to show only those workflows whose RotateZ value is greater than 90.

Textual Queries

There are many ways to search for versions in the version tree using textual queries, but they all rely on a simple text box for input. Begin a search by selecting Search on the toolbar. The search box is at the top of the center panel and has a magnifying glass icon next to it. If you enter query text, VisTrails will attempt to match logical categories, but if your query is more specific, VisTrails has special syntax to markup the query. To execute a query, simply press the ‘Enter’ key after typing your query.

Syntax for querying specific information using textual queries.
Search Type Syntax
User name user: user name
Annotation notes: phrase
Tag name: version tag
Date before: date | relative time
after: date | relative time


Since we allow regular expressions in our search box, question marks are treated as meta-characters. Thus, searching for ”?” returns everything and “abc?” will return everything containing “abc”. You need to use “\?” instead to search for ”?”. So the search for ”??” would be “\?\?”.

Table Syntax for querying specific information using textual queries. lists the different ways to markup a query. Note that you can search by user name to see which changes a particular user has made, and also by date to see which changes were made in a specific time frame. When searching by date, you can search for all changes before or after a given date or an amount of time relative to the present. If searching for changes before or after a specific date, the date can be entered in a variety of formats. The simplest is ‘day month year,’ but if the year is omitted, the current year is used. The month may be specified by either its full name or an abbreviation. For example, 'before: 18 November 2004' and 'after: 20 Dec' are both valid queries. If searching by relative time, you can prepend the amount of time relative to the present including the units to ‘ago’. An example of this type of query is 'after: 30 minutes ago'. The available units are seconds, minutes, hours, days, months, or years.

You can concatenate simple search statements to create a compound query to search across different criteria or for a specific range. For example, to search for workflows whose tag includes 'brain' and were created by the user 'johnsmith', the query would be 'name: brain user: johnsmith'. To search for all workflows created between April 1 and June 1, the query would be 'after: April 1 before: June 1'.

Try it now!

Open the “terminator.vt” example file, and enter Search mode. Let’s look for all workflows that were created after November 24, 2010. In the search box in the Search panel, type 'after: 24 nov 2010' and press ‘Enter’. The expected result is shown in Figure Results of a query to find any changes make after November 24, 2010.

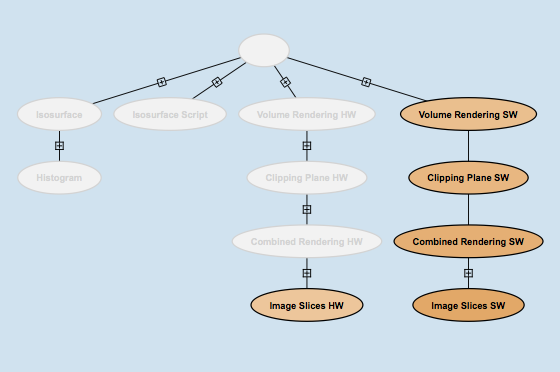

Results of a query to find any changes made after November 24, 2010.

In addition, VisTrails keeps track of the most recent textual queries, and repeating or clearing these queries can be accomplished by selecting the recent query from the dropdown menu attached to the search box. Finally, the ‘X’ button next to the search box will reset the query.

Refining the Results

While in the Search view, you can select two different ways of viewing search results. The magnifying glass icon to the left of the textual search box contains a dropdown menu with two options: “Search” and “Refine” (Figure Clicking the button to the left...). The first displays results by simply highlighting the matching nodes while the second condenses the tree to show only the versions that match. For large vistrails, this second method can help you determine relationships between the matching versions more easily.


Clicking the button to the left of the query text box accesses a dropdown menu.
