Creating a Control Flow Loop Module

This chapter explains how to extend the Control Flow package by creating additional loop modules. For more information on Control Flow or the Control Flow Assistant, please refer to Control Flow in VisTrails or The Control Flow Assistant in the User’s Guide.

Building your own loop structure

In functional programming, fold is a high-order function used to encapsulate a pattern of recursion for processing lists. A simple example of a fold is summing the elements inside a list. If you fold the list [1, 2, 3, 4] with the sum operator, the result will be (((1+2)+3)+4) = 10. It’s common to start with an initial value too. In the sum example, the initial value would be 0, and the result would be ((((0+1)+2)+3)+4) = 10.

With this function, a programmer can do any type of recursion. In fact, the map and filter functions, shown previously, can be implemented with fold. The Control Flow package provides a Fold module to enable this functionality, and the Map and the Filter modules inherit from the Fold class.

In fact, any control module that has this kind of recursion uses the Fold class. To use this functionality for your own control modules, instead of defining the compute() method, you need to define two other methods:

  • setInitialValue(): in this method, you will set the initial value of the fold operator through the self.initialValue attribute;
  • operation(): in this method, you must implement the function to be applied recursively to the elements of the input list (e.g., the sum function). More specifically, you need to define the relationship between the previous iteration’s result (self.partialResult attribute) and the current element of the list (self.element attribute); this method must be defined after the setInitialValue() one.

It’s important to notice that all modules inheriting from Fold will have the same ports, as Map and Filter, but you can add any other ports that will be necessary for your control structure. Also, you do not need to use the input ports “FunctionPort”, “InputPort” and “OutputPort”. You will only use them when you create an operator like Map and Filter, which need a function to be applied for each element of the input list.

As an example, we will create a simple Sum module to better understand the idea. Create a new package, and the code inside it would be as follows:

from controlflow import Fold, registerControl

version = "0.1"
name = "My Control Modules"
identifier = "edu.utah.sci.my_control_modules"

def package_dependencies():
    return ["edu.utah.sci.vistrails.control_flow"]

class Sum(Fold):
    def setInitialValue(self):
        self.initialValue = 0

    def operation(self):
        self.partialResult += self.element

def initialize(*args,**keywords):

We begin by importing the Fold class and the registerControl function from the Control Flow package (Line 1). The registerControl function is used to register the control modules, so the shape of them can be set automatically.

Also, define the variables version, name and identifier, as it’s done for all packages. The interpackage dependency (include reference of the package chapter) is used too, as My Control Modules requires a module and a function from Control Flow (Lines 7 and 8); in this way, VisTrails can initialize the packages in the correct order. Then, create the class Sum, which inherits from Fold. Inside it, set the initial value to 0 inside the setInitialValue() method (Lines 11 and 12), and define the sum operator inside operation(), as shown clearly by the relation between self.partialResult and self.element (Lines 14 and 15).

The last thing we must do is define the initialize() method, so the package can be loaded in VisTrails. However, instead of calling the registry, if you do not need any other ports, you just have to call the registerControl() function (Line 18).

Save this package and enable it inside VisTrails. Create a similar workflow as shown in Figure A workflow using the Sum module.

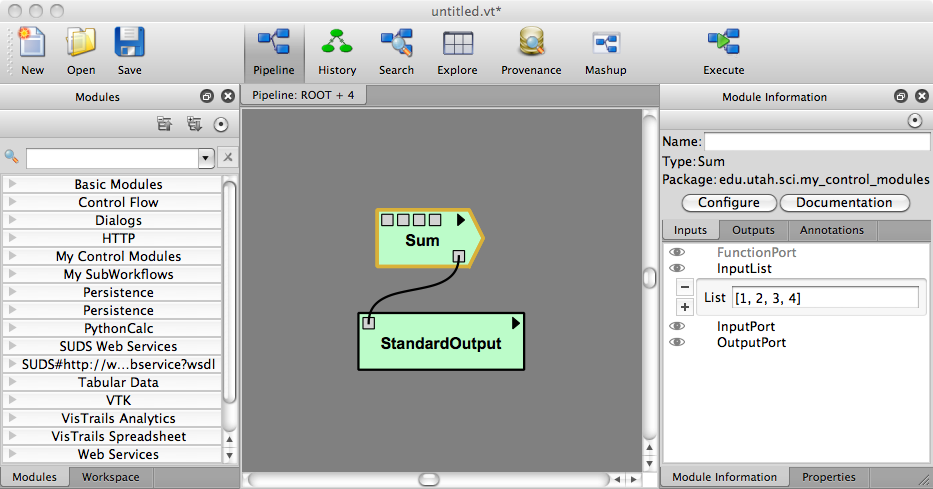

A workflow using the Sum module

Upon executing this workflow, the sum ((((0+1)+2)+3)+4), should be printed on your terminal as follows:


Note that the input ports “FunctionPort”, “InputPort” and “OutputPort” were not necessary for this module. Now, let’s see another example that does use them. Open the workflow we used to calculate the area of isosurfaces (in “triangle_area.vt”, “Surface Area with Map and Filter” version), and delete the Map, the Filter, and the FilterCondition (PythonSource) modules.

Now, create a single module that maps the list and filters the results, named as AreaFilter. Inside your package, add the following class:

class AreaFilter(Fold):
    def setInitialValue(self):
        self.initialValue = []

    def operation(self):
        area = self.elementResult

        if area>200000:

The initial value is an empty list, so the result of each element can be appended to it (Line 3). In the operation() method, the self.elementResult attribute is used (Line 6); it represents the result of the port chosen in “OutputPort”; so, it means that “FunctionPort”, “InputPort” and “OutputPort” will have connections. In this workflow, self.elementResult is the area for each contour value inside the input list, and, if the area is above 200,000, it will be appended to the final result (Lines 8 and 9). We can easily see that this module does exactly the same as Map and Filter combined.

Don’t forget to register this module in the initialize() function. After doing this, save the package and load it again inside VisTrails. Then, just connect AreaFilter as in Figure The same workflow, but now with AreaFilter.

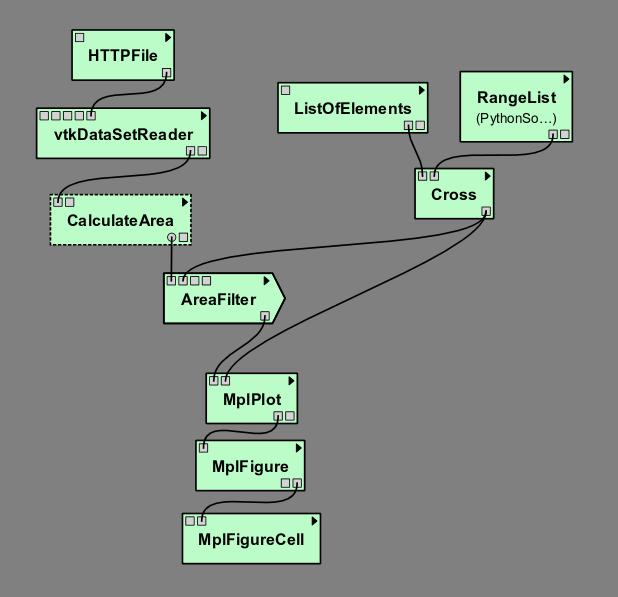

The same workflow, but now with AreaFilter

Now, you must set some values in the following parameters of AreaFilter:

  • “InputPort”: [“SetValue”]
  • “OutputPort”: GetSurfaceArea

When you execute this workflow, the result in the VisTrails Spreadsheet will be the same as shown previously (Figure The result in the VisTrails spreadsheet). It shows the flexibility of doing a recursion function by inheriting from Fold.
