Embedding VisTrails Files Via Latex

The VisTrails Latex extension allows you to embed a result from a VisTrails file in a Latex document. Images to be included in the Latex document will be generated through VisTrails and can be linked to the VisTrails file and version from which it was generated. In other words, Latex call VisTrails to generate an image for a resulting PDF document. The resulting image can be set up so, when clicked, the generating VisTrails file will be opened in Vistrails.

Latex Setup and Commands

This section contains instructions for setting up Latex files to use VisTrails. For a complete example of this setup, you may also refer to example.tex in VisTrails’ extensions/latex directory.

To use the Latex extension, copy vistrails.sty and includevistrail.py from the extensions/latex directory to the same directory as your .tex files. Then, add the following line to the beginning of the latex file:

\usepackage{vistrails}

By default, VisTrails will be executed at www.vistrails.org and the images downloaded to your hard drive. If you want to run a local copy of VisTrails instead, add the path to your python file or executable:

\renewcommand{\vistrailspath}{/path/to/vistrails.py}

By default, images are set up to link to their corresponding VisTrail. However, if you are using your own web server, additional setup is required (see Setup For Use With Files on MediaWiki or a Web Server). Otherwise, to setup the images without links (not clickable), add:

\renewcommand{\vistrailsdownload}{}

Finally, if you don’t have python on your path, use this to set the python interpreter:

\renewcommand{\vistrailspythonpath}{/path/to/python/executable}

Note: If you set the vistrailspythonpath to an invalid path VisTrails will use cached files if they exist.

Setup For Use With Files on MediaWiki or a Web Server

Many VisTrails files and/or data is stored in a database that readers of a pdf document might not have access to. If the files are also accessible through the web, the following instructions explain setup that will allow readers to download the VisTrail or workflow through MediaWiki or a web server.

MediaWiki

To setup your MediaWiki for use with VisTrails:

• In your wiki/extensions folder, create a config.php file based on the config.php.sample file located in VisTrails’ extensions/http folder.

• Copy download.php, functions.php, and vistrailsExtension.php from the extensions/mediawiki folder to your wiki/extentions folder and update these files according to your needs.

• Configure your .tex files with:

  \renewcommand{\vistrailsdownload}{http://yourwebserver.somethingelse/download.php}

Web Server

To configure VisTrails to run on your web server:

• Create a config.php file based on the config.php.sample file located in VisTrails’ extensions/http folder.

• Copy functions.php and downloads.php from the extensions/mediawiki folder and update them according to your needs.

• Depending on the functionality you want to make available, copy any or all of the following files:

  • run_vistrails.php - will execute workflows and return images and pdf files
  • get_db_vistrail_list.php - will return a list of VisTrails available in the database
  • get_vt_xml.php - will return a VisTrail in xml format
  • get_wf_pdf.php - will return a workflow graph in pdf format
  • get_wf_xml.php - will return a workflow in xml format

• Configure your .tex files with:

  \renewcommand{\vistrailspath}{http://yourwebserver.somethingelse/run_vistrails.php} \renewcommand{\vistrailsdownload}{http://yourwebserver.somethingelse/download.php}

Including VisTrails Results in Latex

To include VisTrails Results in a Latex file:

• Select the History view.
• Ensure that a version is selected.
• Press the Embed button at the bottom of the Properties Panel. This will launch a dialog with embedding options (see Figure Embedding Options).
• Select the result that you would like to display. The choices are: workflow results, workflow graph, and history tree graph.
• Select Latex.
• You should then choose from a number of “Embed” and “Download” options which will be explained in the tables below.
• Select “Copy to Clipboard”
• Paste clipboard contents into you Latex document
• Run pdflatex with the -shell-escape option: pdflatex -shell-escape example.tex.

Note on using local VisTrails files: Relative or absolute filenames can be used in the .tex file, but absolute filenames are used in the pdf. Thus, if the absolute location of the file has changed, the pdf will need to be regenerated even if the relative location of the file has not changed. Also, the VisTrails Embed function assumes the .vt file is in the same directory as the .tex file. You will need to change this to an absolute filename if it is not.

Configuration Options

Option	Latex Flag	Description
Workflow Results	version=<...>	Show the results of the specified version.
Workflow Graph	version=<...> showworkflow	Show the workflow instead of the results.
History Tree Graph	showtree	Show the version tree instead of the results.

Embed Options

Option	Latex Flag	Description
As PDF	pdf	Download images as pdf files.
Smart Tag	tag=<...>	Allows you to include a version’s tag. If a tag is provided, version can be omitted and buildalways is implicit.
Cache Images	buildalways (do not include for caching)	When caching desired, the buildalways flag should not be included. If it is included, VisTrails will be called regardless of whether or not it has been called for the same host, db, version, port and vt_id.
Include .vtl	getvtl	Causes the .vtl file to be downloaded.

Download Options

Option	Latex Flag	Description
Include Workflow	embedworkflow	Download the workflow only.
Execute Workflow	execute	Will cause the workflow to be executed when it is opened.
Include Full Tree	includefulltree	Download the complete VisTrail.
Show Spreadsheet Only	showspreadsheetonly	Will initially only show the spreadsheet.

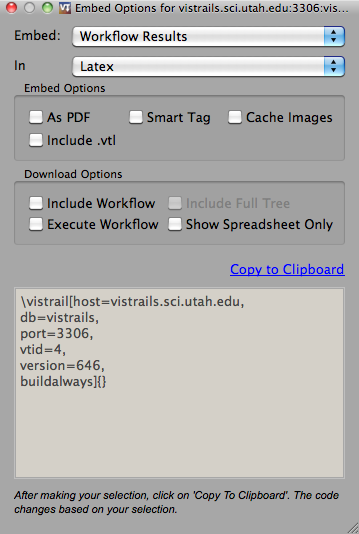

Embedding Options

Example

The following is an example command for including a VisTrails image in Latex:

\vistrails[host=vistrails.sci.utah.edu,

db=vistrails,

version=<version_number>,

vtid=<vistrails_id>,

tag=<tag>

port=3306, %The default value for port is 3306.

buildalways,

execute,

showspreadsheetonly,

pdf,

showworkflow,

showtree,

getvtl,

]{width=0.45\linewidth} %Options you would give to the \includegraphics{} command.

See example.tex in the extensions/latex directory for a complete example of usage.

Additional Notes

After running at least once, VisTrails will cache the images and latex instructions. The latex code will be in the “cached” folder and the images in vistrails_images.

Vistrails will create in the current directory a directory called vistrails_images/host_db_vtid_version with the png files generated by the spreadsheet.
